Main Features
•60W power amplifier
•2 microphone / line inputs
•8 on-board digital effects
•6-8 hours battery life at full power
•List Price $569
Application Info

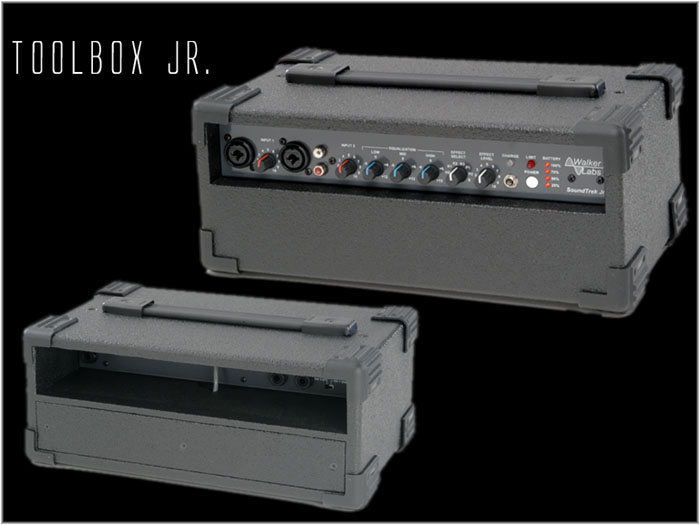

The Toolbox Jr. is the first battery-powered amplifier head designed
to work with your existing speaker cab. The Toolbox Jr. is perfect for
guitar players who already have a favorite cab but need to play outdoors
or where AC power is unavailable. Dual inputs let you play and sing,
or jam along to a CD or tape track. Built-in digital effects can be
applied to one or both channels to sweeten your sound. The internal
"top hat" fitting mounts to standard 1 3/8" speaker stands,
but we recommend our Ultralight
Speaker Stand so you have less to carry.
Detailed Specifications
60W Power Amplifier
•Power amplifier supplies 30W RMS into 8 ohms or 60W RMS into
4 ohms
1 Microphone / Line Input /12V Phantom Power
•Inputs feature high-quality, low-noise preamps with an extra-wide
range to
handle everything from a whispering microphone to a screamin' guitar
1 Mic / Line / Stereo Input
•Left and right stereo inputs (RCA jacks) are summed together
into a mono signal
3-Band Equalization
•Equalization allows adjustment of ±12 dB at 80 Hz, 2
kHz, and 12 kHz
Digital Effects Module
•Assign one of 8 different 16-Bit digital effects to one or
both input channels
Remote Effects Defeating
•Rear footswitch jack allows remote defeating of internal effects
for speaking
Built-In 18 dB Limiter
•Soft limiter with alert LED provides 18 dB of headroom before
distortion
Input / Output Bridging Jack
•Bridging jack allows multiple units to share a common preamp
output bus
Speaker Output Jack
•Rear speaker jack for external cab (4 Ohm minimum load)
12V Accessory Power Jack
•Battery charger jack also provides 12V output power at up to
1 Amp
6-8 Hours Battery Life
•Four-stage battery level indicator flashes when voltage is
critically low
Automatic Power Shutoff
• Microprocessor turns unit off after 15 minutes of inactivity
to conserve power
Battery Charger Included
•AC-powered battery charger fully recharges the internal battery
in 6 hours
•Battery charge LED indicates rapid (red) or float (green) charge
status
Rugged Urethane Coating
•Attractive yet rugged polyurethane coating resists water and
abrasion
Speaker Stand Mount
•Mounts to standard (1 3/8" dia.) speaker stands using
integral "top hat" fitting
|
